Diaphragm Seal Pressure Gauge

Get a Price/Quote

Product Details:

Operating Pressure 0 to 600 kg/cm2 (varies by model)
Features Corrosion Resistant, Suitable for harsh chemicals, Glycerin filled for vibration dampening, Custom connection sizes
Application Chemical, Petrochemical, Pharma, Food & Beverage, Process Industries
Power Source Mechanical
Accessories Capillary Tube, Cooling Tower, Flushing Connection, Various Adaptors
Temperature Range -20C to +120C (Standard) / Up to +250C with cooling options
Mounting Type Bottom / Back / Remote Capillary Mounting
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Diaphragm Seal Pressure Gauge Price And Quantity

Minimum Order Quantity 10 Piece

Process Connection 1/2" BSP, 3/4" BSP, 1" BSP, Flanged as required
Pointer Micrometer adjustable pointer
Case & Bezel Stainless Steel mirror finish
Diaphragm Material SS316L, Hastelloy C, Teflon, Monel, as per medium
Protection Class IP65 / IP66
Dial Size 2.5", 4", 6" (63mm, 100mm, 150mm)
Filling Fluid Glycerin, Silicon Oil, as application demands
Window Shatterproof Glass / Acrylic
Accuracy Class 1.6% of F.S. (Standard)

Diaphragm Seal Pressure Gauge Product Specifications

Structure Remote & Direct Mounting
Usage Industrial
Body Material Stainless Steel
Efficiency High Accuracy (1% F.S. Option Available)
Product Type Diaphragm Seal Pressure Gauge
Sealing Type Diaphragm Welded Seal
Operating Pressure 0 to 600 kg/cm2 (varies by model)
Color Silver
Features Corrosion Resistant, Suitable for harsh chemicals, Glycerin filled for vibration dampening, Custom connection sizes
Type Diaphragm Seal Pressure Gauge
Application Chemical, Petrochemical, Pharma, Food & Beverage, Process Industries
Temperature Range -20C to +120C (Standard) / Up to +250C with cooling options
Accessories Capillary Tube, Cooling Tower, Flushing Connection, Various Adaptors
Power Source Mechanical
Mounting Type Bottom / Back / Remote Capillary Mounting
Connectivity Type Mechanical Gauge; No digital output
Size Standard

Process Connection 1/2" BSP, 3/4" BSP, 1" BSP, Flanged as required
Pointer Micrometer adjustable pointer
Case & Bezel Stainless Steel mirror finish
Diaphragm Material SS316L, Hastelloy C, Teflon, Monel, as per medium
Protection Class IP65 / IP66
Dial Size 2.5", 4", 6" (63mm, 100mm, 150mm)
Filling Fluid Glycerin, Silicon Oil, as application demands
Window Shatterproof Glass / Acrylic
Accuracy Class 1.6% of F.S. (Standard)

Diaphragm Seal Pressure Gauge Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 7 Days

Product Description

Experience the ephemeral brilliance of our Diaphragm Seal Pressure Gauge-crafted for those who demand sizzling performance and elite accuracy. This magnificent instrument is available in grand dial sizes of 2.5", 4", and 6" (63mm to 150mm), with versatile process connections including BSP threads and flanges. Its welded diaphragm, forged from SS316L, Hastelloy C, Teflon, or Monel, ensures enduring corrosion resistance. With a protection class up to IP66, micrometer-adjustable pointer, and value-driven, customizable options, it suits diverse process industries across India where precision is paramount.

Elite Application and Advantage of Diaphragm Seal Pressure Gauge

The diaphragm seal pressure gauge is engineered for remote or direct mounting, offering versatile application across chemical, petrochemical, pharmaceutical, and food & beverage sectors. This instrument's grand advantage is its ability to isolate harsh process media, protecting sensitive gauge internals. Its usage type is strictly mechanical, ensuring accurate readings even in the most severe industrial environments. Application methods include bottom, back, or capillary mounting, adapting seamlessly to your process setup for maximum reliability and safety.

Certifications, Domestic Market Reach, and Convenient Payment Terms

Certified for robust industrial use, our diaphragm seal pressure gauge is meticulously tested to deliver performance at the lowest price point. The main domestic market served is India, ensuring widespread drop-off capabilities and swift fulfillment. For your convenience, diverse payment terms are available-making procurement straightforward and value-driven. Secure the best rate for premium industrial instrumentation, with assured after-sales support and timely delivery, wherever your facility is located across the nation.

FAQ's of Diaphragm Seal Pressure Gauge:

Q: How does the diaphragm seal pressure gauge ensure long-term reliability in harsh environments?

A: The gauge features a welded diaphragm and stainless steel construction, providing superior corrosion resistance and protecting internal mechanisms from aggressive chemicals, ensuring consistent and reliable operation over time.

Q: What process connections and mounting types are available for this pressure gauge?

A: Available process connections include 1/2", 3/4", and 1" BSP threads and flanged options as required, with mounting types such as bottom, back, or remote capillary for adaptable installation in various settings.

Q: When should I choose Hastelloy C, Teflon, or Monel for the diaphragm material?

A: Select the diaphragm material based on your process medium. Hastelloy C, Teflon, and Monel are recommended for highly corrosive or aggressive chemicals, ensuring the gauge withstands specific industrial media without degradation.

Q: Where is this diaphragm seal pressure gauge predominantly used?

A: It is primarily utilized across chemical, petrochemical, pharmaceutical, food & beverage, and other process industries where dependable pressure measurement under challenging conditions is critical.

Q: What advantages does glycerin or silicon oil filling provide?

A: Glycerin or silicon oil filling dampens vibration and reduces pointer flutter, enabling stable and precise pressure readings, even in environments with heavy equipment or turbulent process lines.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pressure Gauge' category

Vaccum Pressure Gauge Minimum Order Quantity : 10 Body Material : Stainless Steel Application : Vacuum Systems, Industrial Equipment, Laboratories Color : Black Type : Other, Analog Vacuum Pressure Gauge Features : Corrosion Resistant, Shatter Proof Glass, Easy Read Dial Operating Pressure : 0 to 760 mmHg (Vacuum); 0 to 15 kg/cm2 (Pressure) Size : Standard Power Source : Other, Mechanical Accessories : Mounting Bracket, Calibration Certificate Temperature Range : 20C to +60C Mounting Type : Other, Bottom or Back Mount Structure : Bourdon Tube Product Type : Vaccum Pressure Gauge Usage : Liquid Pressure, Measuring Gas Efficiency : High Accuracy Sealing Type : Other, Gasket Sealed Force : Other, Atmospheric

Send Inquiry

Dual Pointer Pressure Gauge Minimum Order Quantity : 1 Body Material : Stainless Steel Application : For measuring and comparing the pressure of dual sources in hydraulic and pneumatic systems, process industries Color : Silver Type : Other, Dual Pointer Pressure Gauge Features : Dual pointer for comparative measurement, Clear dial, Shatterproof glass, Corrosionresistant Operating Pressure : 016 bar (standard), custom ranges available Size : Standard Power Source : Other, Mechanical (No external power required) Accessories : Calibration Certificate, Mounting Bracket Temperature Range : 20C to +60C Mounting Type : Other, Bottom/Back Mount Structure : Bourdon Tube Product Type : Dual Pointer Pressure Gauge Usage : Liquid Pressure, Measuring Gas Efficiency : High accuracy, 1.6% FSD Sealing Type : Other, Threaded Connection with Oring Connectivity Type : Analog connection

Send Inquiry

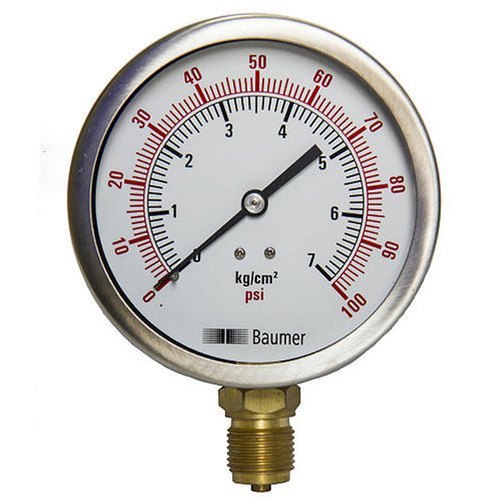

Pressure Gauges Price : 100.00 INR/Piece Minimum Order Quantity : 1 Body Material : Other, Stainless Steel / Brass / Mild Steel Application : Industrial, Hydraulic, Pneumatic Systems, Process Industries Type : Other, Analog Dial Type Pressure Gauge Features : Glycerine Filled / Dry Type, ShatterResistant Glass, Corrosion Resistant, Clear Scale Markings Operating Pressure : 0 to 300 bar (range may vary as per model) Power Source : Other, Mechanical Accessories : Protective Rubber Cover (optional) Temperature Range : 20C to +60C Mounting Type : Other, Bottom / Back Mount Structure : Bourdon Tube Efficiency : High Accuracy, 1.6% FSD Sealing Type : Other, Threaded or Flanged Connection Connectivity Type : Analog Force : Other, Mechanical (Bourdon Principle)
